Product introduction

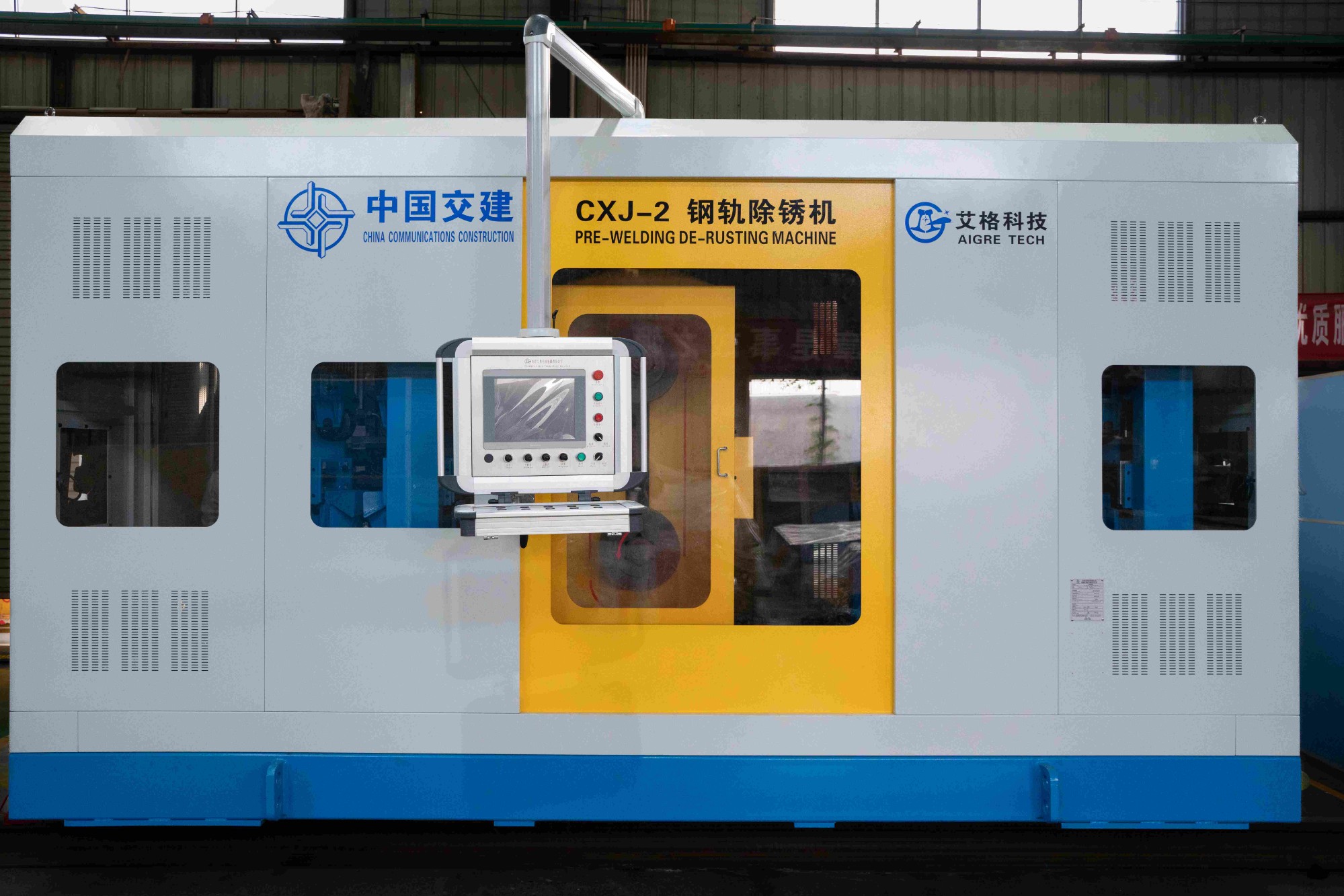

This product is the key equipment in the long rail welding production line, which is composed of derusting device, dust removing device, rail guiding and clamping device, electric control system, mobile vehicle and other parts. It is mainly used for derusting the top, bottom and end faces of rails to be welded before welding, and the derusting quality meets the relevant requirements of TB/T1632.2-2014.

Product Features

1. This product adopts box-type closed structure, clean operation environment and friendly human-computer interface.

2. The use of millipede wheel grinding rust, rail top, rail bottom for the rail longitudinal grinding, to ensure the effect of rust removal and does not hurt the parent material.

3. Adopting PLC automatic control, with automatic and manual operation function.

4. Equipped with high-power dust collector, which meets the emission standard after treatment.

Main Technical Parameters

Maximum derusting length of rail top and bottom: 500mm

Adapt to derusting rail type (Kg/m): 50kg/m, 60kg/m, 75kg/m

Grinding beat: ≤5min/welding head

Equipment power: about 25Kw

Dimension: 5033*2420*3100mm

Net weight: 9000Kg
