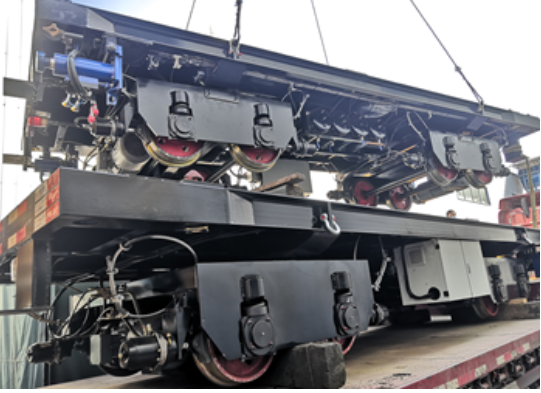

Product Introduction

1. Dual motor drive, motor power of 2×15Kw, powerful;

2. Four-bridge dual steering frame design, stable operation, strong load-bearing capacity;

3. Air brake design with air pressure of 0.7Mpa, storage capacity of 120L, ensuring safe and reliable parking;

4. Motor frequency conversion infinite speed control, more convenient operation;

5. The vehicle is equipped with front and rear hooks, which can be connected or operated independently (requires an external 50KW generator set).

Operating route conditions

Track gauge: 1435mm

Restricted curve radius: 100m

Restricted slope: 40‰

Self-propelled car technical parameters

Power: 15Kw×2

Maximum operating speed: 10Km/h

Brake distance: 3.5m (at 10KM/h)

Positioning speed: 2.5Km/h

Maximum traction operating speed: 20KM/h

Dimensions (length x width x height): 7700x2440x980mm

Weight: 5T

Load capacity: 12 tons
